TC200x290

Linear Guideway Lathe

The TC series linear guideway lathe features an integrated cast bed structure with optimized parameters and internal design, offering a compact footprint. It is equipped with high-precision, high-rigidity roller guideways, a mechanical spindle, and a servo turret, ensuring high precision, high efficiency, and high stability.

Max. Turning Diameter

330 mm

Max. Turning Length

290 mm

Spindle Speed

4500 rpm

Spindle Power

11/15 kW

Spindle Torque

140/255 Nm

Highlights

Integrated Slant Bed

The integrated bed lowers the center height, improving machine rigidity. The main motor is relocated from outside the bed to inside the bed, effectively reducing the footprint.

High Rigidity Spindle

The large through-hole spindle uses imported bearings with two-point support across the series. It has strong rigidity, making it suitable for both heavy cutting and precision machining.

Servo Turret

The entire Series of lathes are equipped with servo turrets, offering fast turret indexing and reliable transmission components. The use of servo turrets enables synchronous tool changing during the machine’s return-to-zero process, enhancing production efficiency.

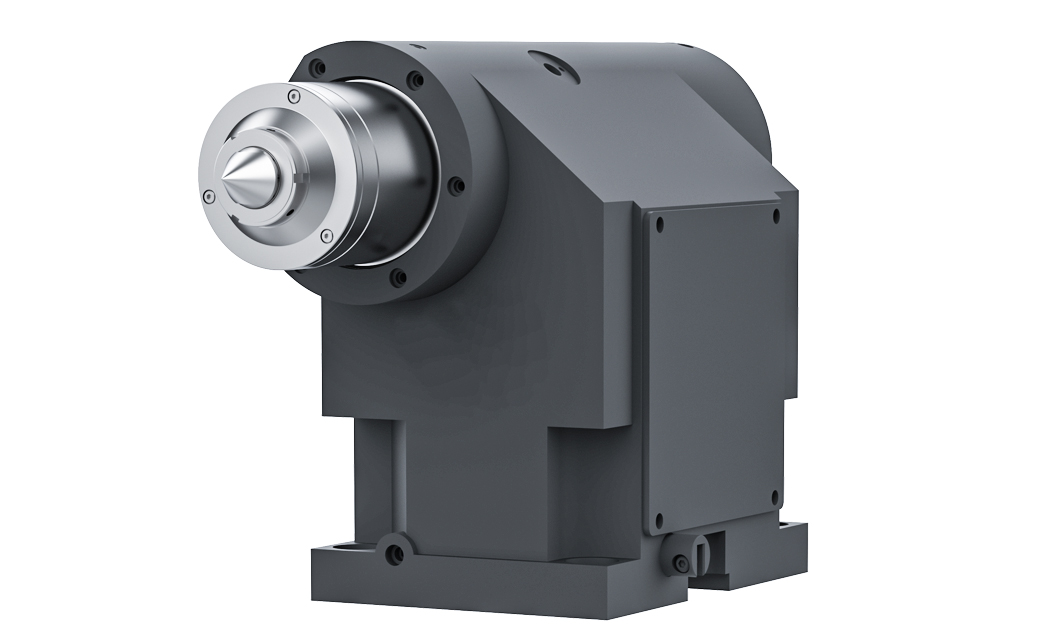

Hydraulic Tailstock

The stepped tailstock structure (with steel inserts) allows for convenient and reliable adjustments. The tailstock movement is driven by the carriage, and the quill extension and retraction are hydraulically driven and programmatically controlled.
